MEDIUM MOUNTS

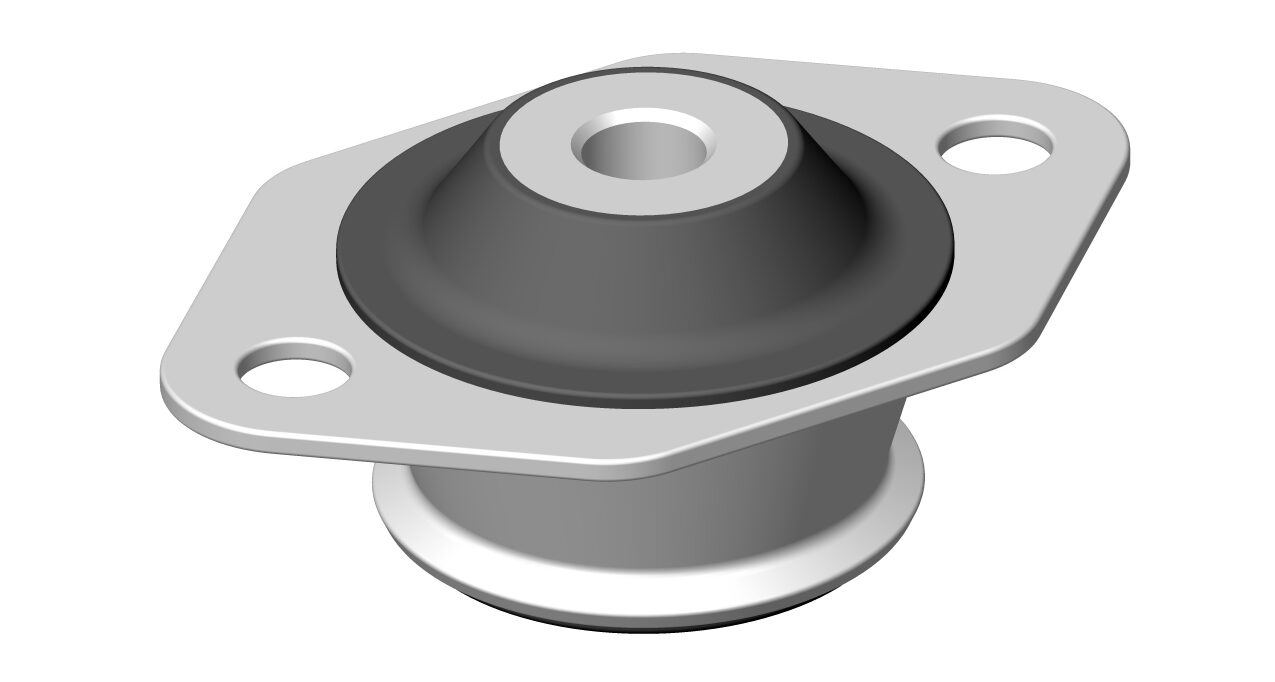

This design of rubber buffer is to prevent shock and overloading offers a progressive absorption from the conical shape.
Max Load Ratings (kg)
| 45 shore | 60 shore | 70 shore | Deflection (mm) | |
|---|---|---|---|---|
| CN 46 | 37.5 | 66 | 108 | 3 |
| CN 48 | 36 | 60 | 84 | 4 |
| CN 60 | 100 | 170 | 250 | 5 |
Max Load Ratings (kg)
| 45 shore | 60 shore | 70 shore | Deflection (mm) | |
|---|---|---|---|---|
| CN 46 | 37.5 | 66 | 108 | 3 |
| CN 48 | 36 | 60 | 84 | 4 |
| CN 60 | 100 | 170 | 250 | 5 |
